USR-C322 Is An Industrial-Grade, Patch-Type Wi-Fi Module, Realizing UART To Wi-Fi Bidirectional Transparency Function

USR-C322 is an industrial-grade, patch-type Wi-Fi module, which realizes UART to Wi-Fi bidirectional transparency function; Ti CC3200 solution, M4 core; low power consumption work mode; small size, easy to embed development; support AP; support AP; support AP; support AP; support AP;, STA distribution network; WeP, WPA/WPA2 secure encryption transmission; support simple AT instruction set configuration; internal/external antenna versions optional; support webpage custom functions; support custom registration package functions.

basic skills

C322 is used to implement the data bidirectional transmission function of UART to Wi-Fi.

Users only need to make simple configuration to quickly realize the network function.

Core scheme

C322 adopts the industry's well -known Ti CC3200 solution,

Industrial -grade design standards provide users with stable product experience and services.

Low -power operation

C322 has made full consideration in terms of power consumption control, and provides five power consumption modes according to the application;

The power consumption can be low at the Internet3.5mA, deep dormancy can reach 25 μA.

Encrypted communication, more secure transmission

C322 supports two encrypted communication methods to fully ensure the security of user data transmission.

PC1 encryption-Wi-Fi module receives data and does PC1 encryption, and then passes to the server.

SSL Client encryption -uses SSL encryption and transmitted to the server to protect the safety of sensitive data during transmission.

Small size

C322's appearance size is only the size of the thumb, exquisite and small,

Easy to weld in user products  Hardware veneer circuit is convenient to embed development and use.

Cases of Internet of Medical Devices

Cumbersome wired network deployment and high use cost, which is not conducive to the promotion and application of medical devices.

C322 is convenient to connected, small volume, low power consumption, and convenient embedding development, which can help medical staff

Quickly upload  patient test data, shorten the patient's medical treatment time and cost, and improve the diagnosis and treatment efficiency of patients.

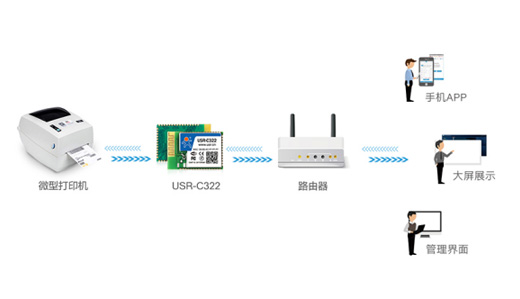

Micro Printer Networking Application Case

C322 can provide a fast and convenient Wi-Fi near-field networking solution to get rid of the tedious restrictions on the wired deployment;

Users can directly adopt LAN control,Wi-Fi one-click connected network, which is more convenient to use.
